AUTOMOTIVE LIGHTING

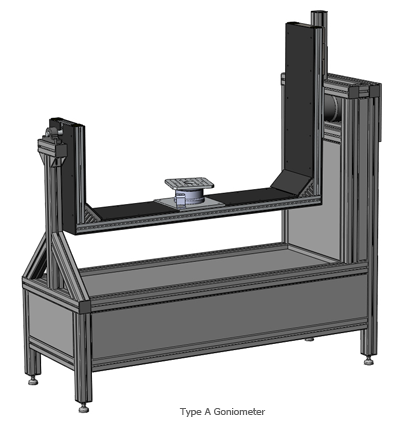

Type "A" goniometer is ideal for measuring automotive lighting, obstruction lighting, aircraft lighting, traffic signals, and retro-reflective reflectors.

Our type "A" goniometer has the added capability of simulating a type "C" goniometer to produce IES files by tilting the luminaire.

---

TECHNICAL SPECIFICATIONS

Product #: ME-GONA01

Machine Dimensions: 1653 mm X 608 mm X 1732 mm

Control Rack Dimensions: 559 mm X 635 mm X 1880 mm

Recommended Test Distances:

 Headlamps and Foglamps: 60 feet minimum
    with a 25' aim screen

 Automotive Signal Lighting: 25 feet minimum

Retro-reflective reflectors: 100 feet

 Aircraft Flash Lampt: 25 feet minimum
    50' or greater preferred.

Electrical Input: 120/240 VAC 15A (2 circuits required)

Rotational Accuracy: <0.01

Photometric Accuracy: 0.01 cd (0.2% + 5% range)

   12-16 bit fl' <3% (v' <0.5% available) 0.01 cd

Mechanical Accuracy: +/-1 mm

Speed: Stop and Read - User selectable "line scans"

Maximum Luminaire Size: 1200 mm wide X 600 mm tall

---

AVAILABLE OPTIONS

Remote Monitoring and Control	NIST Traceable Calibration Sources	User Defineable Script Files
DC Power Supply 500W	Thermal-Couple Integration	Detector Spectral Correction
AC Power Supply 1200W	Power Analyzer	NIST Traceable Power Measurement
Retro Reflector Measurement	License Lamp Measurement	IES File Creation
Flash - Energy	Flash - Effective Intensity	Flash - Color Tristimulus
