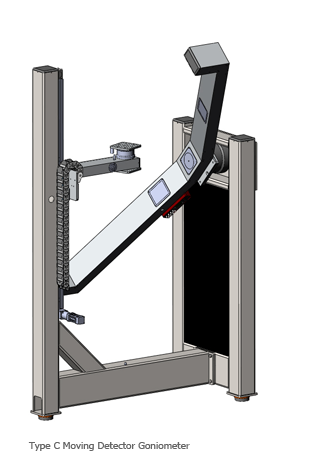

COMPACT DESIGN
Small format goniometer brings the benefits of C-type photometry in a
smaller package than regular mirror based goniometers. Ideal for
measuring replacement lamps and luminaires which have an illuminated
area of less than 8" (210 mm) in diameter. System will measure all parameters necessary for R&D confirmation, production quality control and standards confirmation. Interface is powerful enough for engineering confirmation, yet easily operated by non-technical operators. Data collection is fully automated and reported out in IES, text, or Microsoft Excel formats.
TECHNICAL SPECIFICATIONS
Product #: ME-GONC01
Machine Dimensions: 3550 mm X 2235 mm X 3362 mm
Control Rack Dimensions: 559 mm X 635 mm X 1880 mm
Recommended Room Size: 3658 mm X 4268 mm X 3658 mm
Electrical Input: 120/240 VAC 15A (2 circuits required)
Rotational Accuracy: <0.01
Photometric Accuracy: 0.01 cd (0.2% + 5% range)
12-16 bit f' <3% (v' <0.5% available) 0.01 cd
Mechanical Accuracy: +/-1 mm
Speed: Up to 5 RPM
Maximum Luminaire Size: 210 mm lit diameter, 305mm x 305 mm
AVAILABLE OPTIONS
 Color Uniformity |
Remote monitoring and control |
NIST Traceable Calibration Sources |
| Selectable Points Measurements |
DC Power Supply 500W |
Thermal-Couple Integration |
| Detector Spectral Correction |
AC Power Supply 1200W |
Relative Photometry |
| NIST Traceable Power Measurement |
Thermal Logging |
