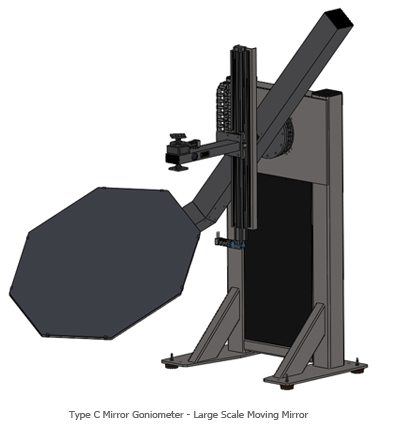

LARGE SCALE MOVING MIRROR
Large format mirror goniometer brings benefits of C-type photemetry in a full size package. Ideal for measuring small lamps to large fixtures, indoor luminaires and outdoor luminaires. System will measure all parameters necessary for R&D confirmation, productions quality control and standards confirmation. Interface is powerful enough for engineering confirmation, yet easily operated by non-technical operators. Data collection is fully automated and reported out on IES, text or Microsoft Excel formats. TECHNICAL SPECIFICATIONS
Product #: ME-GONC02
Machine Dimensions: 1842 mm X 925 mm X 4192 mm
Control Rack Dimensions: 559 mm X 635 mm X 1000 mm
Recommended Room Size: 9144 mm X 12192 mm X 4572 mm
NOTE: Room can be smaller, contact Mayer Engineering
Electrical Input: 120/240 VAC 15A (2 circuits required)
Rotational Accuracy: <0.01°
Photometric Accuracy: 0.01 cd (0.2% + 5% range)
12-16 bit f' <3% (v' <0.5% available) 0.01 cd
Mechanical Accuracy: +/-1 mm
Speed: Up to 6 RPM Photopic and Tristimulus
Maximum Luminaire Size: 2' X 4' (610 mm X 1220 mm)
NOTE: Larger size up to 4' x 4' Available
AVAILABLE OPTIONS
 Color Uniformity |
Remote Monitoring and Control |
NIST Traceable Power Measurement |
|
| Selectable Points Measurements |
DC Power Supply 500W |
NIST Traceable Calibration Sources |
|
| Edison Base Bulb Mounting Fixture |
IES File Generation |
Thermal Logging |
|
| Detector Spectral Correction |
AC Power Supply 1200W |
LM-79 Test Protocol |
|
| Thermal Couple Integration |
Relative Photometry |
Moving Baffle for High Volume Testing |
